Centrifugal Blower:
High-Pressure, High-Volume Airflow for Industrial Ventilation & Process Applications
Centrifugal Blowers are industrial-grade air-moving devices designed to deliver high-pressure airflow in demanding environments. Unlike axial fans, centrifugal blowers accelerate air radially using a rotating impeller, generating higher static pressure and greater control over airflow direction. They are ideal for ventilation, cooling, drying, material handling, dust collection, and combustion air supply.
Available in a variety of designs—including backward-curved, forward-curved, and radial blade configurations—centrifugal blowers are built for energy efficiency, stable performance, and long service life under continuous-duty conditions.
Core Advantages:
High Static Pressure Capability:
Ideal for systems with resistance—such as filters, ducts, or long ventilation paths.
Consistent Airflow:
Maintains uniform performance even under variable load and system pressure.
Multiple Impeller Designs:
Choose from backward-inclined, forward-curved, radial, or paddle-wheel types for your specific need.
Rugged Construction:
Built with cast aluminum, stainless steel, or powder-coated steel for industrial durability.

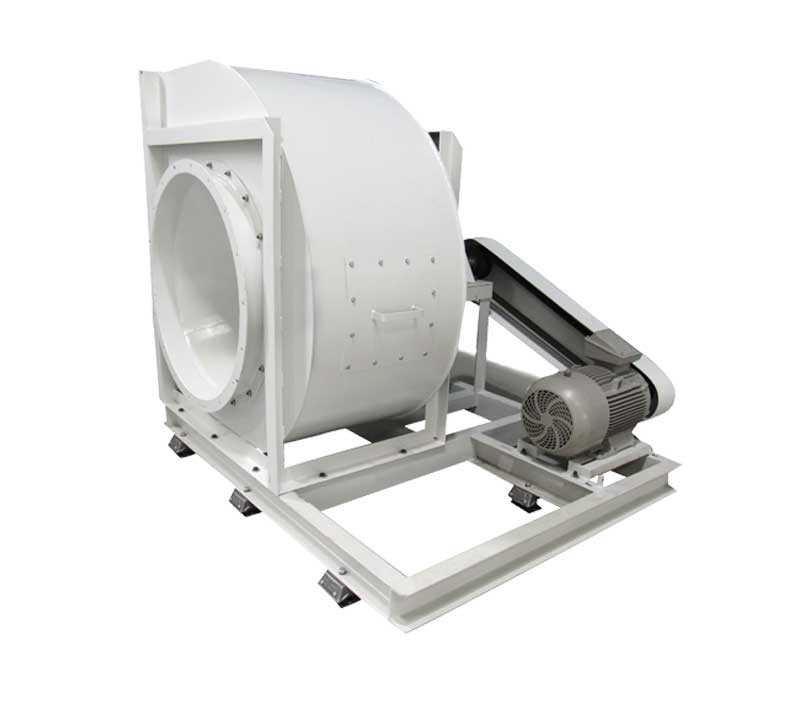

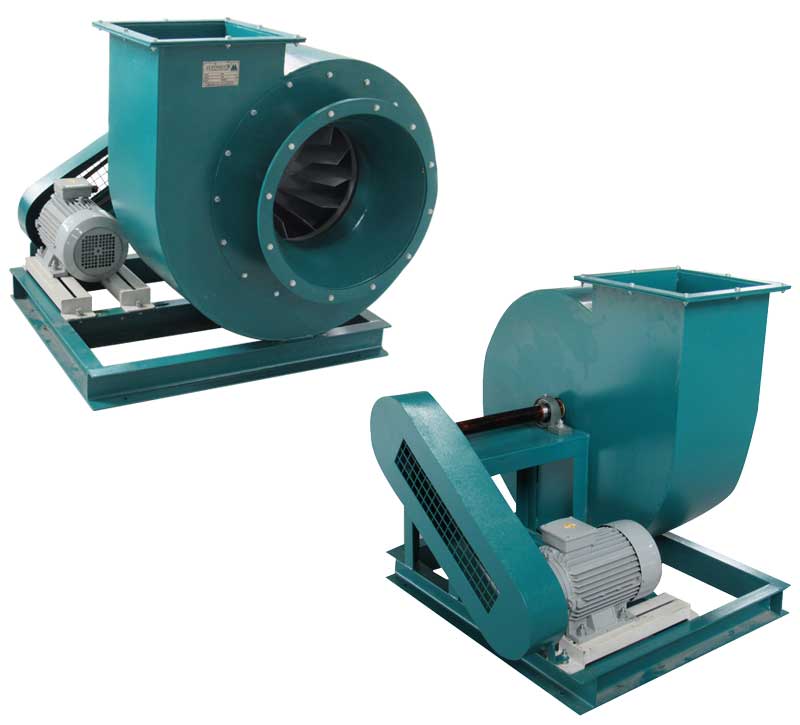

Unevac's Centrifugal Blower
Discover high-efficiency modular dust collectors with advanced filtration and pulse-jet cleaning technology. Flexible, scalable dust extraction systems designed for industrial air quality, energy efficiency, and OSHA compliance.
Our Centrifugal Blower is ideal for:
-
fume extraction systems
-
Chemical & Food Processing Industries
-
Medical & Pharmaceutical Industries
-
Dust Collectors
Technical Specifications:- Centrifugal Blower
| Model | Power (kw/hp) | Air Flow (m3/hr) | Suction (mbar) | Voltage | Noise Level (db) | Suction Port Size (mm) |
|---|---|---|---|---|---|---|
| UVCB - 10 | 0.75/1.0 | 900 | 100 | 415 V & 50 Hz | 63 | 63 |
| UVCB - 20 | 1.5/2.0 | 1800 | 150 | 415 V & 50 Hz | 64 | 75 |
| UVCB - 30 | 2.2/3.0 | 2100 | 150 | 415 V & 50 Hz | 64 | 100 |
| UVCB - 50 | 3.5/5.0 | 2800 | 200 | 415 V & 50 Hz | 69 | 150 |
| UVCB - 75 | 5.5/7.5 | 3400 | 200 | 415 V & 50 Hz | 75 | 150 |
| UVCB - 100 | 7.5/10.0 | 5200 | 300 | 415 V & 50 Hz | 85 | 250 |
*Note: Technical Specifications may change at any period by the company
