Fume Extractor:
Fume Extractors for Safe and Clean Industrial Workspaces
Fume extractors are essential industrial air filtration systems designed to capture and remove harmful fumes, smoke, and airborne contaminants at their source in manufacturing environments. Widely used as welding fume extractors, soldering fume extractors, and chemical processing fume extractors, these systems protect worker health by reducing exposure to hazardous dust, metal fumes, and volatile organic compounds (VOCs).

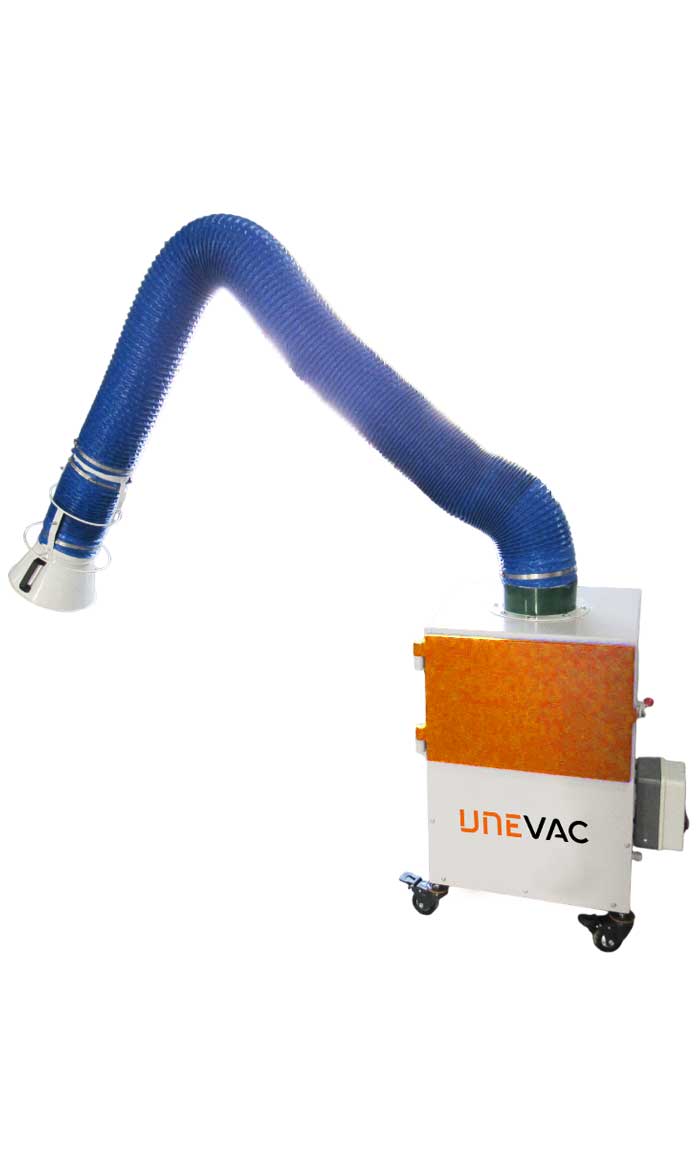

Unevac portable fume extractors feature advanced filtration technologies, including HEPA filters, activated carbon filters, and electrostatic precipitators, ensuring effective removal of fine dust particles, metal fumes, and harmful industrial fumes. Designed for maximum efficiency, these fume extractor systems are flexible and can be positioned close to the source using adjustable arms or extraction hoods, making them ideal for welding, soldering, chemical manufacturing, and 3D printing operations.
Key Benefits of Unevac Fume Extractors
Localized Fume Capture:
Unevac Fume Extractor directly targets fumes and smoke at the point of generation, preventing their spread in the workspace.
Improved Worker Safety:
Reduces inhalation of toxic substances, meeting OSHA health and safety requirements.
Compact & Portable Design:
Easy to move and adjust for different tasks and workstations.
Low Maintenance:
Equipped with long-life filters and user-friendly filter replacement systems.
Enter Your Details
Unevac
Fume Extractor
Range Of Models
Why Choose Unevac Fume Extractor ?
Unevac fume extractors are trusted by industries worldwide to maintain clean air and meet regulatory safety standards. Contact us to find the best model tailored to your specific workplace needs.
Our Fume Extractor is ideal for:
-
Welding and Metal Fabrication
-
3D Printing
-
Automotive Industry
-
Aerospace
Technical Specifications:- Fume Extractor
| Model | Power (kw/hp) | Air Flow (m3/hr) | Suction (mm of WG) | Voltage | Noise Level (db) | Dimension (mm) | Suction Port Size (mm) | Filter Type | MOC | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| UVFE – 10 | 0.75/1.0 | 950 | 100 | 415 V, 50 Hz | 65 | 500 x 500 x 590 | 100 | Cartridge Filter | MS Powder Coated | 40 |
| UVFE – 20 | 1.5/2.0 | 1400 | 125 | 415 V, 50 Hz | 68 | 555 x 555 x 590 | 125 | Cartridge Filter | MS Powder Coated | 55 |
| UVFE – 30 | 2.2/3.0 | 2100 | 150 | 415 V, 50 Hz | 72 | 600 x 600 x 590 | 150 | Cartridge Filter | MS Powder Coated | 70 |
